FILL TANKS FAST

alkin-logo png.png

Alkin Compressors has been making high quality air compressors for the diving industry since 1992. They manufacture systems that provide between a 3.7 and 50 SCFM charge rate with a max 6000 PSIG, along with nitrox blending compressors, to create a complete system for scuba enthusiasts.

Alkin Compressors air quality is beyond industry standards and complies with EN12021 & CGA E Grade air quality. Fill stations are built to exceed NFPA standards with independent certification from a third party laboratory.
Dependability and safety are the two core values of Alkin Scuba Compressors. Alkin customers know they can trust the quality of their compressors and divers will not only get ultra-pure breathing air under water, but also complete Alkin satisfaction.

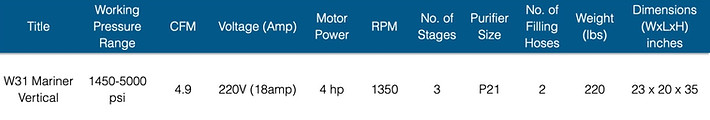

W31 MARINER SCUBA

The three-stage, reciprocating, splash lubrication system, and portable design of the W31 series compressors provide exceptional performance to their consumers. ​​

They are ideal for use in operations requiring breathing air in accordance with EN 12021 standard and high pressure air, and are available with electric, petrol, and diesel engine drive options.


​Standard  Features

  • P21 Purifier with Refillable Purifier Element

  • 2nd and 3rd Stage Water Condensate & Oil Separator

  • Intercoolers (Stainless Steel)

  • Aftercooler (Stainless Steel)

  • Priority Valve (Pressure Maintaining Valve)

  • Check Valve

  • Safety Valve at Each Stage

  • Oil Level Glass

  • Electrostatically Painted Portable Chassis

  • Manual Start / Stop

  • Manual Condensate Drain

  • Power Cable

  • Thermal Overload Protection for Electric Motor

  • Control Panel: On / Off Buttons

  • Hour meter (Included in all models except Manual Gasoline Engine)

  • Filling Hose (Yokes, Filling Valves, Pressure Gauges, DIN Adapters)

  • Air Quality complies with EN 12021, Grade E and D.

Optional Features

  • Automatic Start / Stop and Condensate Drain

  • Pressure Switch

  • Dual Pressure System 225-345 Bar / 3260-5000 Psi

  • Stainless Chassis

  • Extra Filling Hoses

  • Disposable Filter Cartridge

W4 SILENT CANOPY


​Compressed air capacity ranges from 24 to 35 CFM per minute at a maximum working pressure of 6000 psi.

  • Max working pressure 415 Bar/6000 Psi

  • 22 / 35 CFM options

  • Electric / Gas / Diesel power options

  • ​Auto Start/Stop/Condensate drain

  • Repackable and diposible purifier cartridge​

  • Low RPM - 650

  • Oil level switch

  • 62 dBA sound level

  • Nitrox compatible

  • Removable fill panel station

W32 SILENT CANOPY​

W32 model compressors are ideal for compressed air needs in the commercial sector or industry, especially in diving and fire services with its 3-stage design and high-quality components. ​

Its main advantages are high dependability, ease of operation, robustness, and the ability to tailor equipment components to meet customer needs. Compressed air capacity at 11.3 CFM at a maximum operating pressure of 5000 psi with our W32 model compressors, which are available with petrol and diesel engine drive options.

  • Max working pressure 345 Bar/5000 Psi

  • 8.8 / 10.7 CFM options

  • ​Auto Start/Stop/Condensate drain

  • Repackable and diposible purifier cartridge​

  • Low RPM - 1600

  • Oil pressure switch

  • 72 dBA sound level

  • Nitrox compatible

FILL STATIONS


Item: DiveFill-4

Item Number: Alk-dv-fs-4

This fill station specifically designed for dive shops. Fill station can be mounted on a wall or compressor. it can be easily hooked to air storage system or feed directly from the compressor. Fill station comes with unique easy use, self bleed Alkin stainless steel filler valve and allows operator to fill 4 tanks at a time.

Fill station can be designed as dual pressure system with integrated regulator allows operator to select between different pressure ratings.

AIR STORAGE SYSTEMS


Get approximately 38 refills of 2216 PSI 45 CF SCBA cylinders from a four cylinder cascade system. This estimate of refills assumes the SCBA cylinder has 500 PSI remaining in it at the time of refilling.

UN/ISO/DOT cylinders can be mounted vertically or horizontally and are used in a stationary or mobile application.

NITROGEN BLENDERS

PNG n.png

The LM.NT mixer family consists of four models, that are CE certified. Each LM.NT product will give you with a solution to accomplish your objectives, from the "basic" blender, the initial stage in the manufacturing of Nitrox; to the "King" blender, with its own software, either fixed or for expedition.

png cfd.png

Base Blender

  • Direct Nitrox production up to 40%, with your compressor.

  • Easy to install and use.

  • Continuous filling.

  • Works with all compressors from 100 to 600L/min.

  • Optionnal security in case of compressor shut down

  • CE certification.

PNG d.png

Genius Blender​

  • Easy to install and use for Nitrox blending, with electronic control and proprietary software management.

  • 24v Power supply by the compressor or separated.

  • Diving simulation with the integrated software to find the best mix.

  • Visual and sound alarms.

  • Software sensor management.

  • Automatic disconnection in case of anomaly.

  • CE certification.

PNG n.png

King Blender

  • Easy to install and use for Nitrox and Trimix blending, with electronic control and proprietary software management..

  • 24v Power supply by the compressor or separated.

  • Diving simulation with the integrated software to find the best mix.

  • Visual and sound alarms. (Hypoxia et hyperoxia)

  • Software sensor management.

  • Automatic disconnection in case of anomaly

  • CE certification
